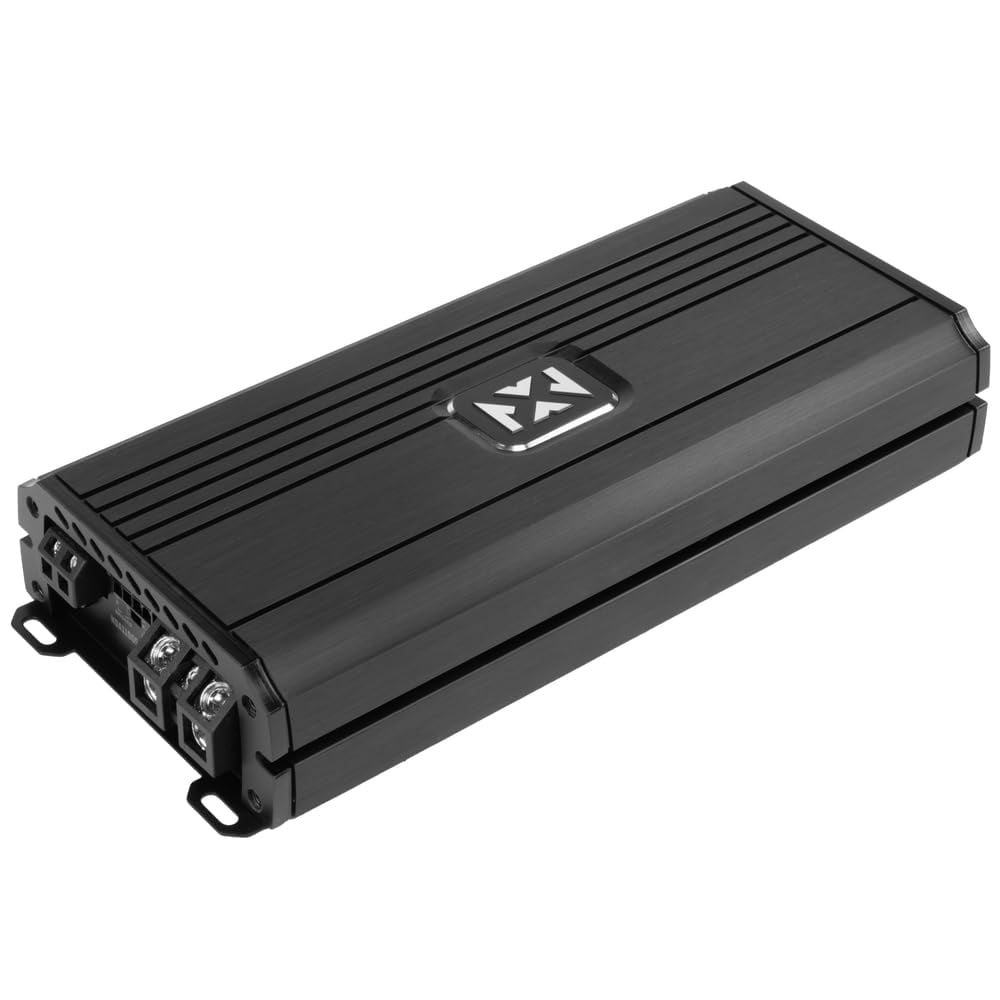

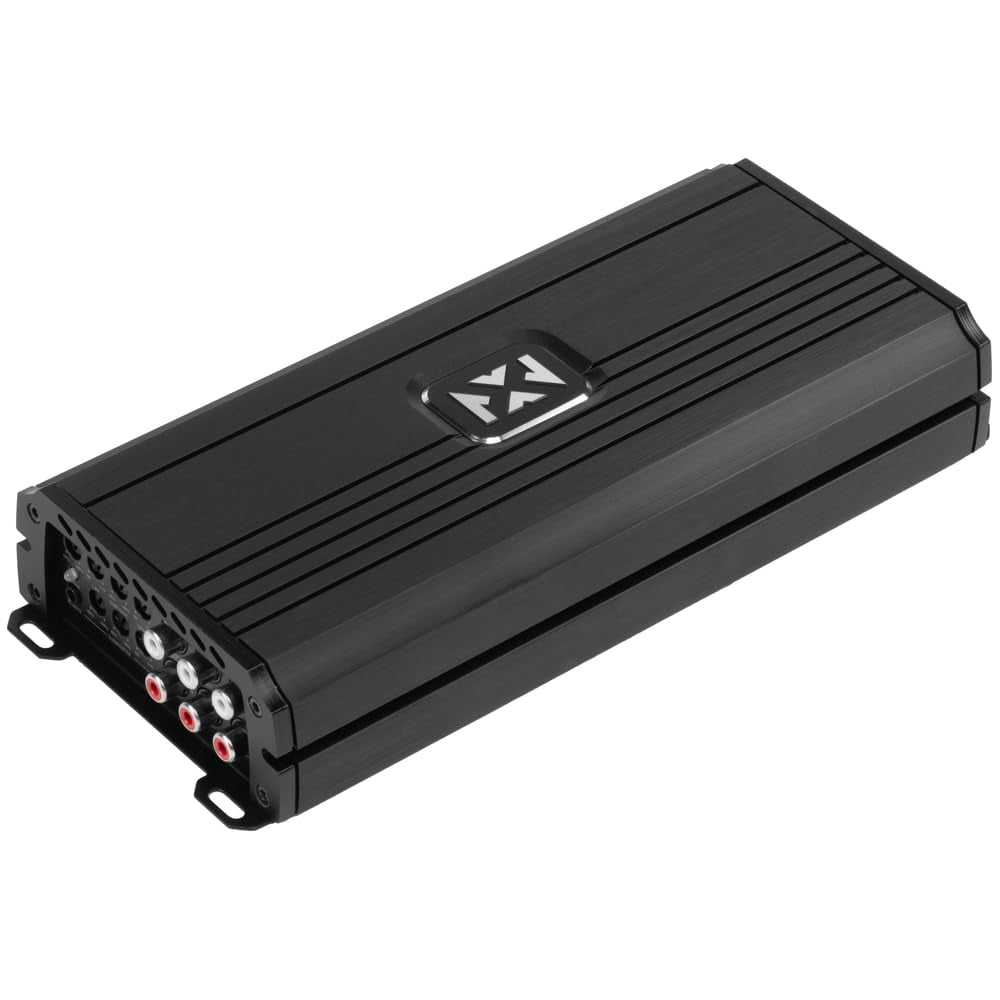

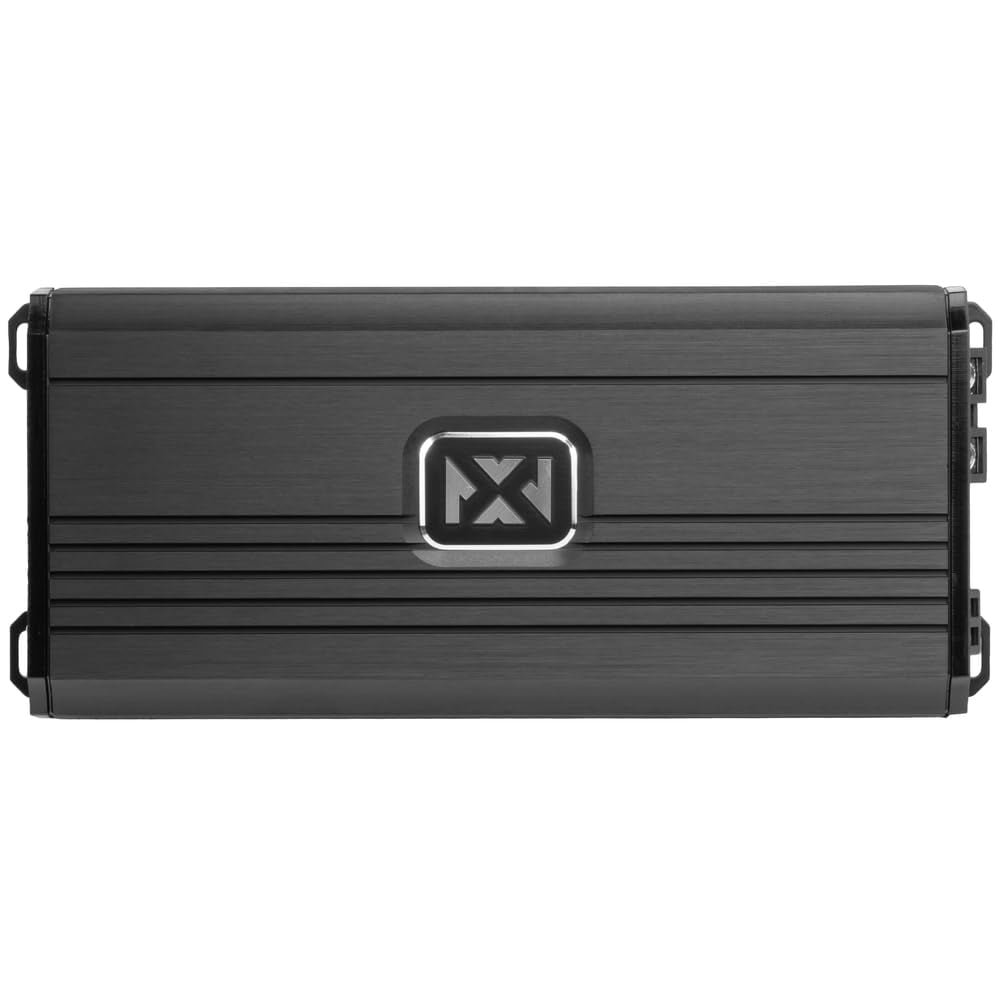

NVX NDA11005 5-Channel Car Amplifier 2200W Peak N-Series Class-D with Remote Bass Knob
Product details
| Management number | 238022439 | Release Date | 2026/07/11 | List Price | US$90.00 | Model Number | 238022439 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The new NVX NDA11005 Car Amplifier delivers 2200W peak power and 1100W RMS, with multiple configuration options, including 4 ohms (100W x 4 + 315W x 1), 2 ohms (150W x 4 + 500W x 1), and bridged mode (300W x 2 + 500W x 1), providing powerful and flexible audio performance. Features a variable high-pass filter (40 - 400 Hz) and a subsonic filter (10 - 55 Hz) for precise tuning, allowing you to customize the sound to your preference and achieve optimal audio quality. Equipped with 4-way protection circuitry, including thermal, overload, speaker short, and DC offset protection, ensuring safe and reliable operation under various conditions.
- Product Highlights
- 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohms
- 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohms
- Bridged: 300 watts x 2 channel @ 4 ohms + 500 watts x 1 channel @ 2 ohms
- Total RMS Power: 1100 watts
- Class D 2 ohms Stable 5-Channel-Channel Amplifier
- Product Details:
- N-Series Class D 2 ohms Stable 5-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 100 watts x 4 channel + 315 watts x 1 channel
- 2 ohms: 150 watts x 4 channel + 500 watts x 1 channel
- Bridged: 300 watts x 2 channel @ 4 ohms + 500 watts x 1 channel @ 2 ohms
- Total power output: 1100 watts
- LED Power/Protect Light

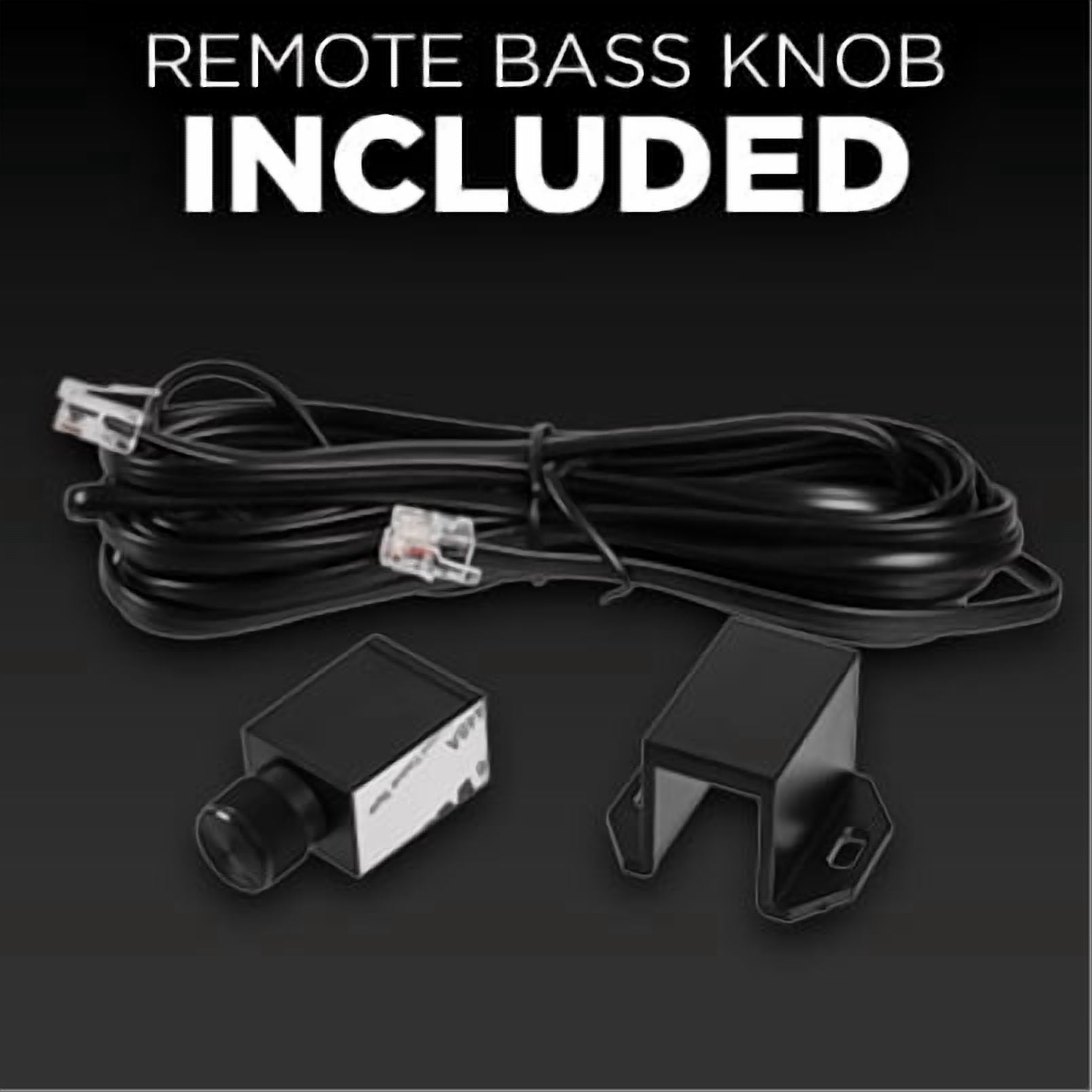

- Wired bass level remote control included
- Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
- Signal sensing remote turn-on
- 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
- Balanced differential inputs eliminate noise picked up by signal cables
- Input sensitivity:
- Low level and High level: 0.2 - 10 volts
- Frequency Response: 20 - 20,000 Hz
- Total Harmonic Distortion (THD): <0.1%%
- Signal to Noise Ratio: >96 dB

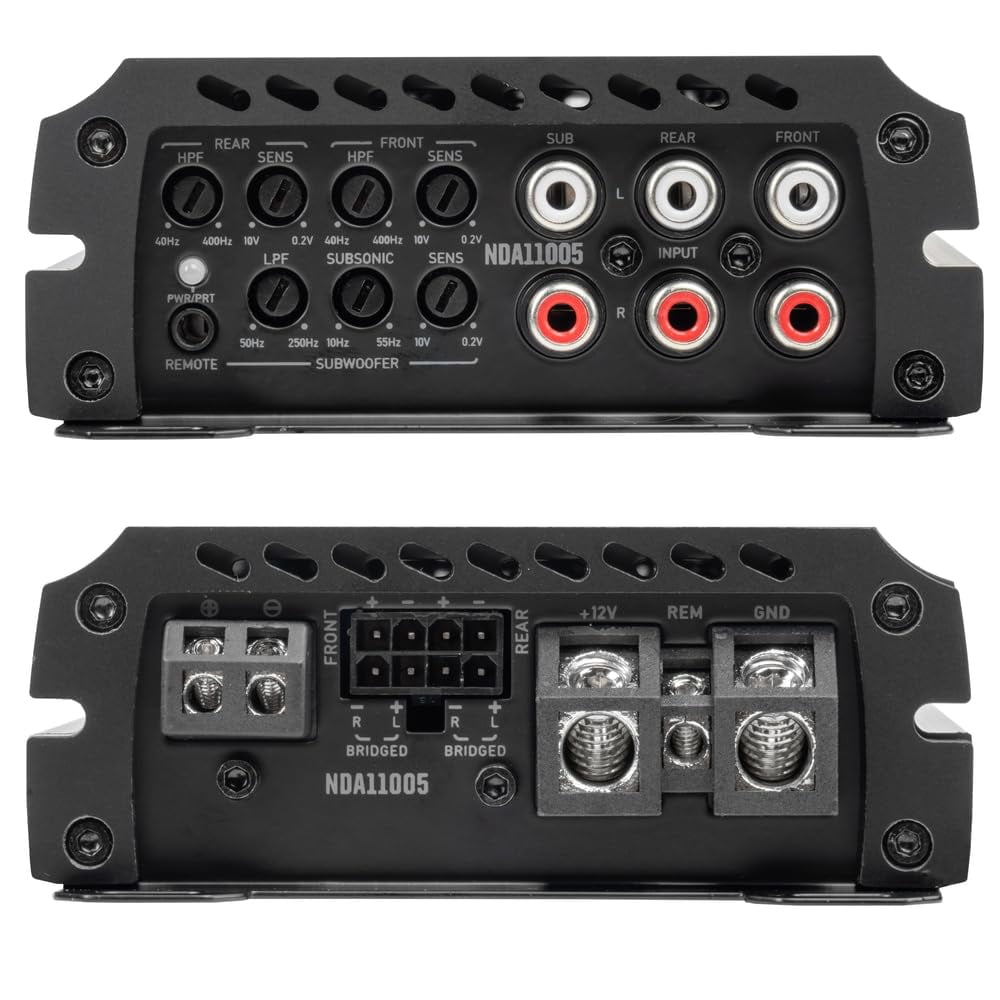

- Variable high-pass filter: 40 - 400 Hz
- Subsonic filter: 10 - 55 Hz
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 10.15" L x 4.42" W x 1.73" H
- Authorized Internet Dealer
- 1 Year Manufacturer's Warranty
- MFR #: NDA11005
- Key Features
- Amplifier Key Features - Compact Design, Speaker Level Inputs
- Power Specifications - Full Range Channels
- RMS Power @ 4 ohms - 100 watts x 4 channel
- RMS Power @ 2 ohms - 150 watts x 4 channel
- Bridged RMS Power - 300 watts x 2 channel
- Power Specifications - Subwoofer Channel
- RMS Power @ 4 ohms - 315 watts x 1 channel
- RMS Power @ 2 ohms - 500 watts x 1 channel
- Power Specifications - Full Range Channels
- Peak Power @ 4 ohms - 200 watts x 4 channel
- Peak Power @ 2 ohms - 300 watts x 4 channel
- Bridged Peak/Max Power - 600 watts x 2 channel
- Power Specifications - Subwoofer Channel
- Peak Power @ 4 ohm - 630 watts x 1 channel
- Peak Power @ 2 ohms - 1000 watts x 1 channel
- Amplifier Specifications
- Series - N-Series
- Amplifier Class - D
- Number of Channels - 5-Channel
- Total Peak Power Output - 2200 watts
- Total RMS Power Output - 1100 watts
- Maximum Input Gauge Size - 4 AWG
- Minimum Impedance Unbridged - 2 ohms
- Minimum Impedance Bridged - 4 ohms
- Frequency Response - 20 - 20,000 Hz
- THD at Rated RMS Power - <0.1%%
- Speaker Level Inputs - Yes
- Preamp Outputs - No

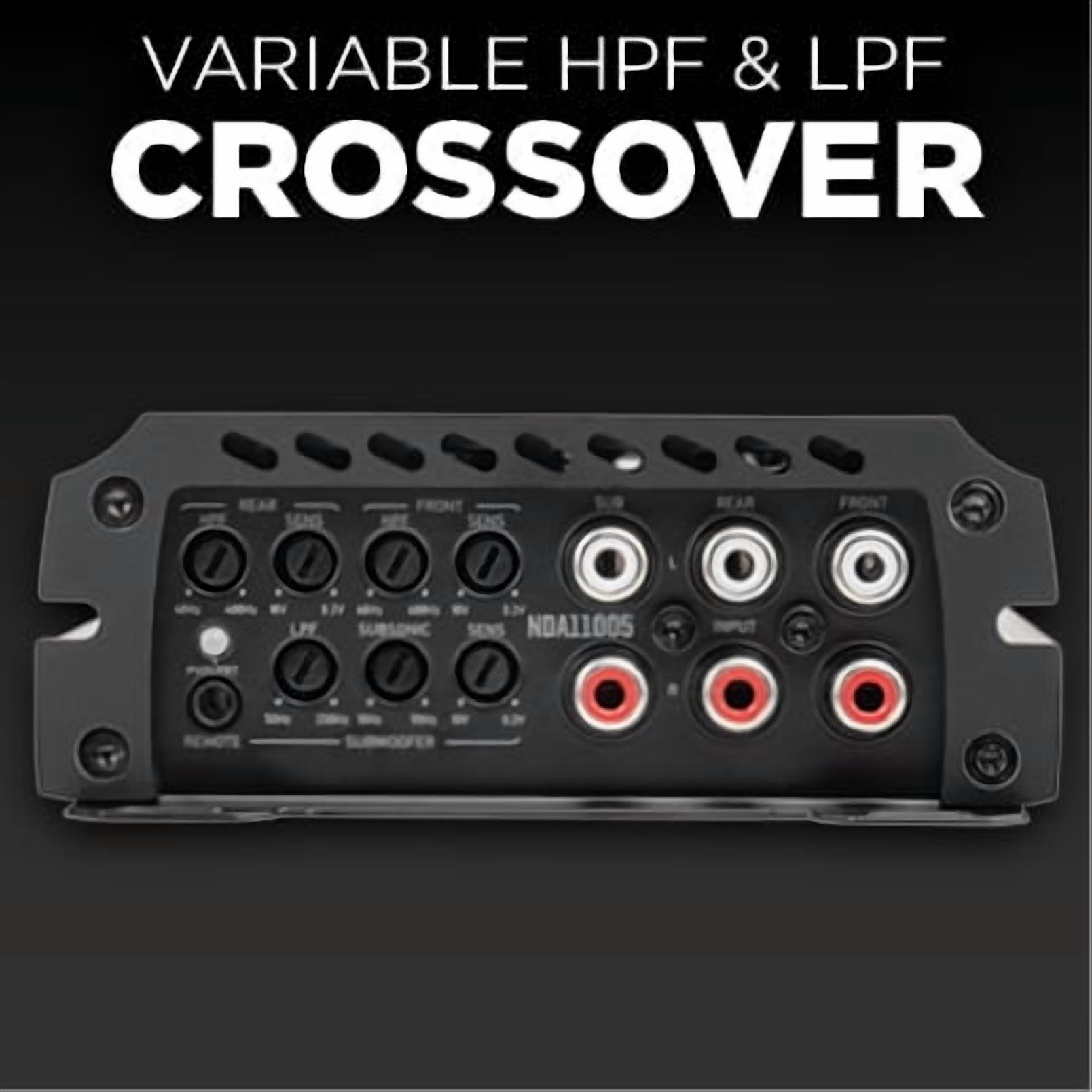

- Built-in Crossover - Low-Pass (LP) - High-Pass (HP), Subsonic
- High-Pass Crossover Frequency - 40 - 400 Hz
- Low-Pass Crossover Frequency - 50 - 250 Hz
- Subsonic Filter - 10 - 55 Hz
- Signal-to-Noise Ratio - >96 dB
- Remote bass/level controller - Yes
- Strappable - No
- Sonic Certified Amplifier - Yes
- Amp Bluetooth Connectivity - No
- Hi-Res Certified - No
- Low-Level Input Sensitivity - 0.2 - 10 volts
- High-Level Input Sensitivity - 0.2 - 10 volts
- What is in the box?
- Paperwork - User manual
- WITB: Amplifiers - Amplifier, Wired gain knob (wire separate), Gain knob wire, Washers (4), Allen wrenches (2)
- Warranty and Return Policy
- Parts Warranty Duration - 1 year
- Labor Warranty Duration - 1 year
- Warranty Provider - Manufacturer
| Brand | NVX |
|---|---|
| Rms power rating | 1100 W |
| Channels | 5 |
| Impedance | 4 ohm |
| Features | Custom-Fit |
| Peak audio power handling | 2200 W |
| Rec. use | Car, Car Audio |
| Size | 1100W RMS 5-Channel |
| Color | Black |
| Rec location | Vehicle |
| Audio output | 1100 W |
| Total harmonic distortion | 0.1 % |
| Signal-to-noise ratio | 96 |
| Items included | NVX NDA11005 |
| Accessories | 2200W Peak (1100W RMS) N-Series Class-D 5-Channel Amplifier with Remote Bass Knob |
| Inputs/Outputs | Speaker-level (high-level) inputs |
| Input/output direction | Input |
| Model | NDA11005 |
| Compatibility | Universal |
| Compatible cars | Universal |
| Vehicle type | Car |
| Vehicle fitment type | Universal |
| Vehicle model | Universal |
| Vehicle make | Universal |
| Has nrtl listing certification | N |
| Assembled product weight | 6 lb |
| Volts | 10 V |
| Amps | 0 Amps |
